Lin 230
Lin 230

Lin 230

Regular price$8,990.00
/
Shipping calculated at checkout.
Dimpled Steel*
Teflon Coating**
316 Stainless Steel***
  • Worldwide Delivery
  • Free Lifetime Support
  • 12 Month Warranty

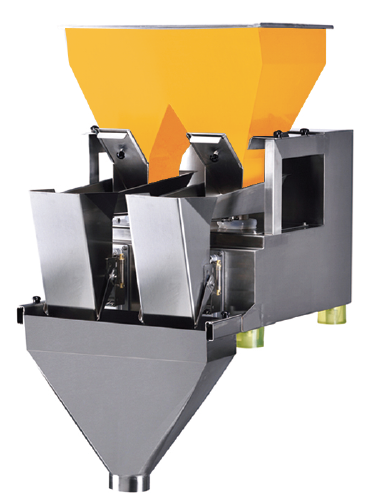

The Lin range

The system features a high precision digital load cell and a 7-inch color touch screen, coupled with a multilingual control system. It offers varying levels of authority for user convenience and management purposes. The incorporation of a next-generation MCU automatic learning function enhances product handling. Users can configure parameters even during operation. Its adaptable design includes an interchangeable integrated modular circuit board within a compact 304 stainless steel body. Maintenance is simplified with tool-free parts release and easy cleaning. The system operates autonomously or can be seamlessly integrated into a packaging line.
What can I pack?

Ideal for packing fine, easy flowing material such as sugar, seeds, salt, spices, nuts, coffee beans etc.
Can't see your product?

Model
Lin 130 Lin 230 Lin 430 Lin 630 Lin 830
Weighing Head No. 1 2 4 6 8
Weigh Hopper Size 3L 3L 3L 3L 3L
Weighing Capacity 10-2000g 10-2000g 10-2000g 10-2000g 10-2000g
Accuracy (Range) ±0.1g-1g ±0.1g-1g ±0.1g-1g ±0.1g-1g ±0.1g-1g
Speed (Max) 8BPM 20BPM 40BPM 60BPM 80BPM
Preset Programmes 15 15 15 15 15
Dimensions 730*520*926mm 85kg 920*650*970mm
112kg
1180*940*980mm 185kg 1260*1220*1390mm 185kg 1880*965*1050mm 360kg
Control System MCU/Touch Screen/Step Motor Driven
Power Supply 220V ±10% 50Hz (60Hz)

✔ High precision digital load cell

✔ 7 inch colour touch screen

✔ Multilingual control system

✔ Different level authority to facilitate users and management

✔ Next generation MCU automatic learning function for products

✔ Parameters can be configured during operation

✔ Interchangeable integrated modular circuit board

✔ 304 stainless steel body with compact design as standard

✔ Tool-free parts release, easy to clean and maintain

✔ Works alone, or integrated into a packing line

Flat leak-proof weigh hopper - for fine products such as sugar

Infeed loading conveyor - to remove the need to manually fill the top hopper

Mini Support Stand

Glass Front Enclosure - to stop fine dust particles escaping

We ship our products worldwide using palletised, tracked courier services. Our most up-to-date delivery charges will be calculated at the checkout depending on what you are ordering and your location.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

*DIMPLED STEEL IS FOR STICKY/FROZEN PRODUCTS TO REDUCE FRICTION AND SURFACE CONTACT
**TEFLON COATING IS FOR NON-FREE FLOWING PRODUCTS SUCH AS FLOUR/POWDERED PRODUCTS
***316 STAINLESS STEEL IS FOR CORROSIVE PRODUCTS SUCH AS SALT
